Hydraulic Surface Grinding Machine

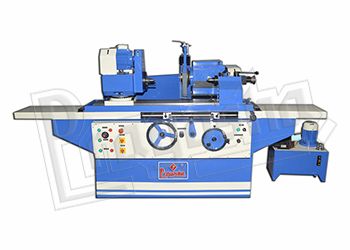

Hydraulic Cylindrical Grinding Machine

Technical Specifications :
  • Model: PCY 600
  • Center Height: - 150 mm.
  • Main Slide is hydraulically operated by reputed hydraulic cylinder.
  • Ø 60 mm × 250 mm High precision internal grinding spindle having 16,000 rpm.
  • Hydraulic operated jib clamping / de-clamping Collet system are provided on customer demand.
  • Work Head Speed range: - 50 to 600 rpm infinitely variable through imported 3 ph. A.C. variable drive.
  • Inbuilt electrical control penal board having all reputed components.
  • Automatic Lubrication on main moveable slide by flow control valve.
  • Automatic in-feed by AC servo motor and ground ball screw directly coupled with imported coupling.
  • LM Guide ways fitted on cross slide.
  • Minimum Oscillation Stroke: - 2 mm through Proximity switch.
  • Imported endless flat belt for high precision spindle to prevent
  • slippage with dynamic Balanced pulley to avoid vibration with all safety guards
  • POWER: -
    (A) Wheel head: - 3 hp
    (B) Work head: - 0.5 hp
    (C) Hydraulic: - 1 hp
    (D) Coolant pump: - 0.1 hp
    (E) Total Power: - 4.6 hp
Cylindrical Surface Grinding Machine, Hydraulic Surface Grinders
