Being certified company, we provide high quality range of the CNC surface grinder with high accuracy. We follow international norms and conditions for the fabrication. Our machines are tested as per IS 2743: 1992. To fabricate best quality machines, we handle through monitoring of the procedure right from the purchasing of the raw material from reliable vendor.

Having advance tools and ultra modern facilities of fabrication, we offer high quality CNC jumbo profile surface grinder machine.

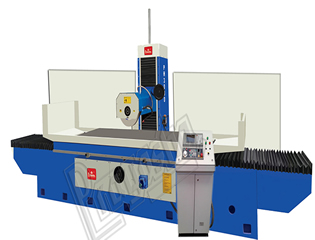

CNC Jumbo Profile Surface Grinder Machine

As equipped with digital servo motor it provides hassle free operations with least maintenance. These highly accurate machines are preferred for variety of industrial sectors. It is provided with counter weight balance device. It contains cartridge type spindle with large diameter. Independent spindle motor is provided as completely enclosed. It contains automatic wheel head. Wide base guide ways helps smooth and easy operations of machine. "V" designs of the longitudinal ways make it suitable for fine and precise grinding operations. Efficient dust control system enhances the workability of machine.

Our grinders are highly demanded in the various industrial sectors for its easy, smooth and punctual operations. It contains cartridge type spindle with large diameter. Totally enclosed, independent motor is provided for the spindle. It contains automatic wheel head. For even and easy operations of machine it contains wide base guide rails. "V" designs of the longitudinal ways of the machine help it to provide fine finished and precise output. To enhance efficient cycles of finishing, suitable dust control system is provided.

Features:
  • Vibration absorbing quality
  • Anti-friction bearings
  • Advance lubrication system
  • Compact model
  • Digital display
  • Precise machined parts
  • High precise works
  • Noiseless
CNC Jumbo Profile Surface Grinder Machine
CNC Jumbo Profile Surface Grinder Machine

APPLICATION : CNC Jumbo Profile Surface Grinder Machine

Machine frames
Engine blocks
Clutch and gears
Various machine parts
Washers
Piston rings

Advantages of CNC JUMBO Profile Surface Grinder Machine

  • Automated 2D/3D Contour Grinding: CNC control enables complex linear, radiused, and stepped profile grinding on large dies.
  • Automated Dresser & Wear Compensation: On-machine diamond dresser automatically resharpen wheels and compensates CNC coordinates.
  • High Load & Large Table Travel: Designed for oversized stamping dies, mold plates, and heavy industrial shear blades.
  • Conversational CNC Programming: User-friendly touch interface simplifies complex profile generation without advanced coding.
  • Enclosed Safety Guarding: Full enclosure retains coolant spray, reduces noise levels, and protects operators.

FAQ'S Of CNC JUMBO Profile Surface Grinder Machine

1. What is a CNC JUMBO Profile Surface Grinder Machine? +It is a large-capacity CNC profile grinding machine designed to automatically grind complex 2D and 3D profiles on large-sized workpieces and heavy molds.
2. What profile grinding capabilities does the CNC JUMBO offer? +It can perform linear, radius, stepped, tapered, and custom contour grinding with automatic wheel dressing compensation via CNC axis synchronization.
3. What industries require a CNC JUMBO profile surface grinder? +Industries including automotive stamping dies, turbine blade manufacturing, heavy machinery tooling, rail equipment, and large aerospace components.
4. How does automatic wheel dressing compensation work on CNC profile grinders? +The CNC controller monitors wheel wear during diamond dressing and automatically adjusts axis coordinates to maintain exact profile geometry.
5. What CNC control system is used on the CNC JUMBO profile grinder? +It is powered by high-end CNC controllers such as Siemens or Mitsubishi with user-friendly conversational graphical interfaces for profile programming.
6. How do you maintain accuracy on a CNC JUMBO profile surface grinder? +Maintain temperature control in the grinding environment, inspect linear motion guideways, calibrate CNC axes regularly, and clean optical scale encoders.
