Hydraulic Cylindrical Grinding Machine Manufacturer

Prayosha Enterprise manufactures state-of-the-art Hydraulic Cylindrical Grinding Machines designed for precision external (OD) and internal (ID) grinding of cylindrical components.

Built with high-rigidity heavy castings and precision cartridge spindles, our cylindrical grinders achieve sub-micron roundness (within 0.001 mm) and mirror surface finishes on shafts, rolls, and spindles.

The infinitely variable hydraulic table traverse and AC variable frequency workhead drive provide smooth, shockless strokes and optimal RPM selection for varying workpiece diameters.

Equipped with a swing-down internal grinding attachment, operators can seamlessly transition between external and internal grinding setups without disturbing workpiece alignment.

Trusted by leading automotive, hydraulic cylinder, and toolroom manufacturers, our hydraulic cylindrical grinders deliver long service life and reliable heavy stock removal.

Technical Specification : Hydraulic Cylindrical Grinding Machine

  • Model: PCY 600
  • Center Height: 150 mm.
  • Main Slide is hydraulically operated by reputed hydraulic cylinder.
  • Ø 60 mm × 250 mm High precision internal grinding spindle having 16,000 rpm.
  • Hydraulic operated jib clamping / de-clamping Collet system are provided on customer demand.
  • Work Head Speed range: 50 to 600 rpm infinitely variable through imported 3 ph. A.C. variable drive.
  • Inbuilt electrical control penal board having all reputed components.

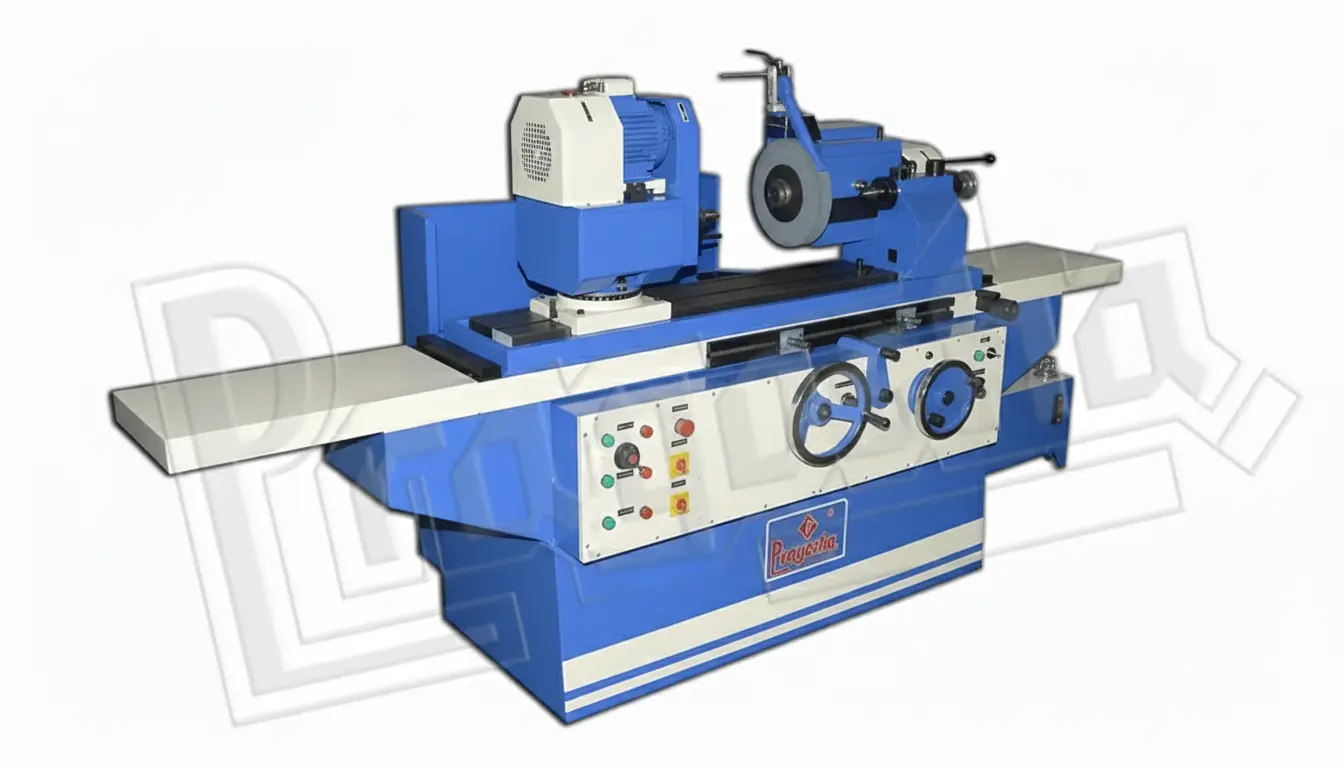

Hydraulic Cylindrical Grinding Machine

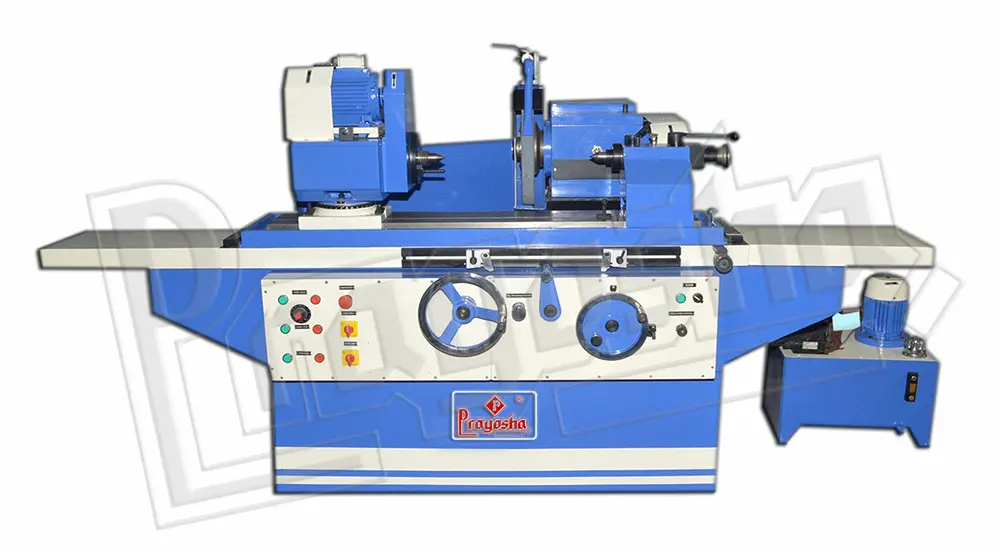

Hydraulic Cylindrical Grinding Machine
  • Automatic Lubrication on main moveable slide by flow control valve.
  • Automatic in-feed by AC servo motor and ground ball screw directly coupled with imported coupling.
  • LM Guide ways fitted on cross slide.
  • Minimum Oscillation Stroke: 2 mm through Proximity switch.
  • Imported endless flat belt for high precision spindle to prevent slippage with dynamic Balanced pulley to avoid vibration with all safety guards
POWER SPECIFICATIONS
(A) Wheel Head
3 HP
(B) Work Head
0.5 HP
(C) Hydraulic
1 HP
(D) Coolant Pump
0.1 HP
(E) Total Power
4.6 HP

Advantages of Hydraulic Cylindrical Grinding Machine

  • High Concentricity & Roundness: Delivers roundness within 0.001 mm on shafts, spindles, rolls, and armatures.
  • Combined OD & ID Grinding: Swing-down internal grinding attachment enables external and internal grinding in a single setup.
  • Infinitely Variable Workhead Speed: AC variable frequency drive allows smooth RPM selection for various shaft diameters.
  • Hydraulic Table Traverse: Smooth, shockless table stroke with adjustable dwell time ensures uniform end-to-end shaft diameter.
  • Rigid Tailstock & Headstock Support: Heavy-duty morse taper centers maintain rigid alignment under heavy grinding pressure.

FAQ'S Of Hydraulic Cylindrical Grinding Machine

1. What is a Hydraulic Cylindrical Grinding Machine? +A Hydraulic Cylindrical Grinding Machine is designed to grind the external (OD) and internal (ID) cylindrical surfaces and tapers of rotating components with high concentricity.
2. What components are typically ground on a hydraulic cylindrical grinder? +Common parts include engine shafts, electric motor armatures, hydraulic piston rods, rolls, bushings, pins, and spindle shafts.
3. How does hydraulic table traverse work on cylindrical grinders? +The hydraulic unit drives the table back and forth smoothly along the longitudinal axis with adjustable dwell times at table reversal points for even end-to-end grinding.
4. Can both external and internal grinding be done on this machine? +Yes, with an optional internal grinding attachment (ID swing-down spindle), the machine can perform both OD and ID grinding operations efficiently.
5. What accuracy and roundness can be achieved on a hydraulic cylindrical grinder? +High-precision models can achieve roundness within 0.001 mm to 0.002 mm and surface finishes down to Ra 0.1 microns.
6. How do you maintain a hydraulic cylindrical grinding machine? +Keep tailstock and workhead centers clean and lubricated, check drive belt tension, inspect hydraulic fluid cleanliness, and balance grinding wheels regularly.
